Paver Block Making Machine
What is a Paver Block Making Machine?
Paver Block making machine is generally used to make blocks, typical areas of use would be for driveways, pavement, patios, town centers, precincts and more commonly in road surfacing. The main benefit of paver blocks over other materials is that individual blocks can later be lifted up and replaced. This allows for remedial work to be carried out under the surface of the paving without leaving a lasting mark once the paving bricks have been replaced. These blocks are manufactured using compression and vibration for settlement of the material, this settlement allows to get better strength and results. The production of paver blocks consists of four basic processes: mixing, molding, curing, and cubing. As being a leading Paver Block Machine Manufacturer we take care of quality, strength, safety, durability and design of our paver block machines.

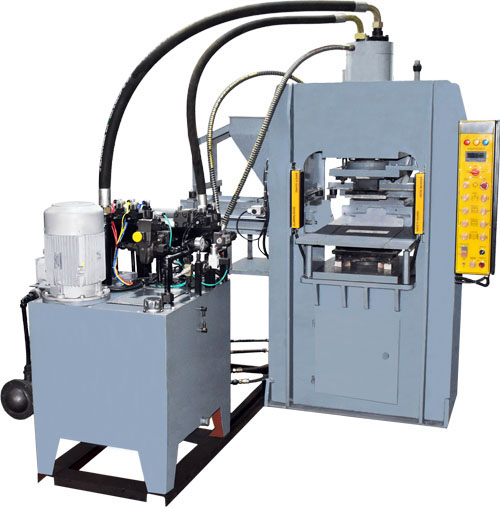

This Paver Block Making Machine is well designed to offer you the best results while making paver blocks of thickness 40 mm to 80 mm. It is a single cavity hydraulic press Paver Block Making Machine which is fully automated and with hammering while pressing to get the best results. Options for single and double color pavers is available via the trolley control.
| Model No. PHM- 04 | Machine Details |
|---|---|
|
Hydraulic Motor |
10 HP |
|
Auto Feed |
Both layer |
|
Press & Ejection |
Auto |
|
Hammering While Pressing |
Yes |
|
Holding While Pressing |
Yes |
|
Cycle Time (Single Color) |
6 seconds |
|
Cycle Time (Double Color) |
8 to 9 seconds |
|
Oil Tank Capacity |
300 litres |
|
Safety Sensor Guard |
Yes |
|
Block Thickness |
40 mm to 80 mm |

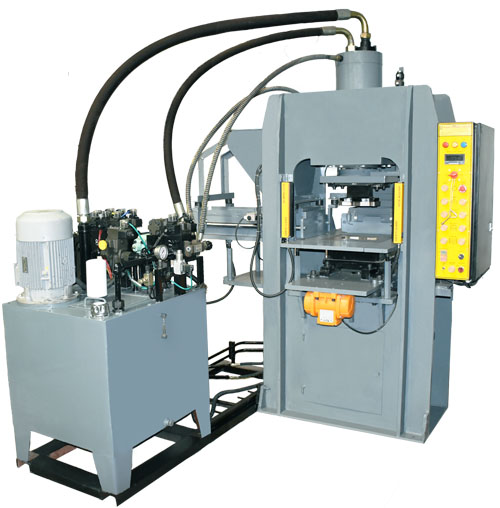

As the leading Fully Automatic Paver Block Machine Manufacturer in India, we take care of our clientele needs, as a result this machine gives you the best strength while making pavers of thickness 40 mm to 100 mm. This Paver Block Making Machine is additionally equipped with two Vibro motors to provide better compression to get the strength and better finishing results. Two trolleys give you the option to make Single & Color Pavers.
| Model No. PHM- 05 | Machine Details |
|---|---|
|
Hydraulic Motor |
10 HP |
|
Auto Feed |
Both layer |
|
Press & Ejection |
Auto |
|
Vibro Motors |
Yes |
|
Cycle Time (Single Color) |
6 seconds |
|
Cycle Time (Double Color) |
9 to 10 seconds |
|
Oil Tank Capacity |
300 litres |
|
Safety Sensor Guard |
Yes |
|
Block Thickness |
40 mm to 100 mm |

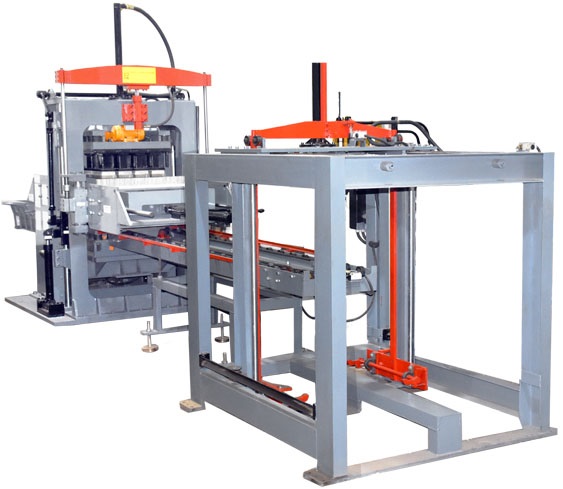

This is a Multi Purpose Blocks & Bricks Making Plant. On this Paver Block Machine Plant automation is at its best, from Pan Mixer to Stacking Unit everything is controlled via PLC. Thus very less labour is required which saves time & money. This plant is very efficient as its cutting edge technology and precision manufacturing gives unbeatable results.
| Model No. PHM- 06 Plant | Machine Details |
|---|---|
|
Hydraulic Motor |
10 HP |
|
Vibro Motor |
4 HP |
|
Pallet Size |
600 x 570 x 6 mm/675 x 600 x 6 mm |
|
Pallets Material |
Steel |
|
Panel Board |
PLC |
|
Heaters In Mould |
Yes |
|
Agitator In Trolley |
Yes |
|
Cycle Time |
12 to 17 seconds |
| Model No. PHM- 06 Plant | Pan Mixer Details |
|---|---|
|
Capacity |
500/800/1200 kg |
|
Bucket Capacity |
500/800/1200 kg |
|
Main Hydraulic Motor |
15/25/40 HP |
|
Bucket Lifting Hydraulic Motor |
5 HP |
|
Water Motor |
0.5 HP |
|
Bins For Material |
3 |
|
Load Cell 3 Nos |
1.5 Ton Capacity |
|
Digital Display For Material & Water |
Yes |
|
Water Flow Control |
Automatic |
| Model No. PHM- 06 Plant | Conveyer Details |
|---|---|
|
Hydraulic Motor |
5 HP |
|
Length |
7.5 meters |
|
Width Of Belt |
450 mm |
| Model No. PHM- 06 Plant | Receiving Carriage Details |
|---|---|
|
Hydraulic Motor |
1 HP |
|
Length |
2.5 meters |
| Model No. PHM- 06 Plant | Stacker Details |
|---|---|
|
Hydraulic Motor |
3 HP |
|
Length |
2 meters |
|
Width |
1 meter |
ONE OF THE BEST MACHINERY OF INDIA
Get One Of The Best Integrated Machinery Of India, The Leading Manufacturer Of Premium Quality Paver Block Making Machine, Fly Ash Brick Making Machine, Solid Block Making Machine, Hollow Block Making Machine, Curb Stone Making Machine, Pan Mixers & Moulds.
