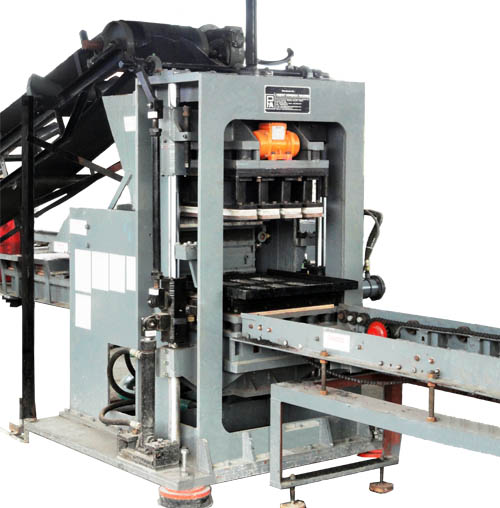

Hollow Block Making Machine
What is a Hollow Block Making Machine?
Hollow blocks may be produced with hollow centers (cores) to reduce weight or improve insulation. The use of block work allows structures to be built in the traditional masonry style with layers (or courses) of staggered blocks. Blocks come in many sizes. These Types of Block are manufactued in hollow block making machine using the required mould. Their stength and finishing depend on the quality of manufacturing of hollow block machine. These machines are heavy duty and requires very less maintenance, resulting in higher profits to our customers.
We are amongst the top and premium Fully Automatic Hollow Block Machine Manufacturer. This Hollow Block Making Machine is manufactured using supreme quality material and latest technology resulting in durabable and longer functional life. This Fully Automatic Hollow Block Making Machine is widely appreciated due to customized solutions for our clientele. Thanks to a flawless finish, sturdy construction and accurate functioning, as the leading Fully Automatic Hollow Block Machine manufacturer in India we are very much appreciated by our clientele over the others. Owing to an affordable price, this Fully Automatic Hollow Block Making Machine is widely popular in the market.
| Model No. PHM- 06 Plant | Machine Details |
|---|---|
|
Hydraulic Motor |
10 HP |
|
Vibro Motor |
4 HP |
|
Pallet Size |
600 x 570 x 6 mm/675 x 600 x 6 mm |
|
Pallets Material |
Steel |
|
Panel Board |
PLC |
|
Heaters In Mould |
Yes |
|
Agitator In Trolley |
Yes |
|
Cycle Time |
12 to 17 seconds |
| Model No. PHM- 06 Plant | Pan Mixer Details |
|---|---|
|
Capacity |
500/800/1200 kg |
|
Bucket Capacity |
500/800/1200 kg |
|
Main Hydraulic Motor |
15/40/50 HP |
|
Bucket Lifting Hydraulic Motor |
5 HP |
|
Water Motor |
0.5 HP |
|
Bins For Material |
3 |
|
Load Cell 3 Nos |
1.5 Ton Capacity |
|
Digital Display For Material & Water |
Yes |
|
Water Flow Control |
Automatic |
| Model No. PHM- 06 Plant | Conveyer Details |
|---|---|
|
Hydraulic Motor |
5 HP |
|
Length |
7.5 meters |
|
Width Of Belt |
450 mm |
| Model No. PHM- 06 Plant | Receiving Carriage Details |
|---|---|
|
Hydraulic Motor |
1 HP |
|
Length |
2.5 meters |
| Model No. PHM- 06 Plant | Stacker Details |
|---|---|
|
Hydraulic Motor |
3 HP |
|
Length |
2 meters |
|
Width |
1 meter |
