Fly Ash Brick Making Machine

What is a Fly Ash Brick Making Machine?

These bricks are made from fly ash residue which is created when specimens of coal are burned for producing electricity. These residue is then mixed  with other components like Sand/Stone, cement etc. These components are then compressed using high pressure hydraulic press resulting in forming of fly ash bricks. These fly ash brick making machine is very economical as per the increasing demand of fly ash bricks. The production of fly ash bricks consists of four basic processes: mixing, molding, curing, and cubing. Nowadays most engineers, building professionals and workers prefer using the fly ash bricks as they are also much stronger than other types of bricks. One of the most distinct advantages of using them is that it’s hardly affected by changing weather conditions. The chemical components of these bricks make them highly resistant to moisture which is why water particles can hardly ever penetrate the surface of these bricks. Get the best fly ash brick making machine from the leading manufacturer, and give boost to your business.

Fully Automatic Fly Ash Brick Machine
Single Cavity Machine For Paver Blocks & Fly Ash Bricks

This Fully Automatic Fly Ash Brick Making Machine is manufactured using certified material which offers safety and reduced cycle time with best quality results.

Model No. PHM- 04 Machine Details
Hydraulic Motor
10 HP
Auto Feed
Both layer
Press & Ejection
Auto
Hammering While Pressing
Yes
Holding While Pressing
Yes
Cycle Time (Single Color)
6 seconds
Cycle Time (Double Color)
8 to 9 seconds
Oil Tank Capacity
300 litres
Safety Sensor Guard
Yes
Block Thickness
40 mm to 80 mm

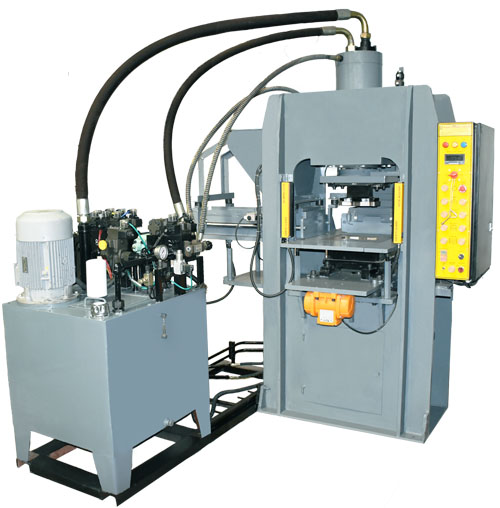

Fly Ash Brick Making Machine
Single Cavity Vibro Machine For Paver Blocks & Fly Ash Bricks

As being one of the Best In Class Fly Ash Brick Manufacturer In India We Are Able To Design And Develop Superior Quality Fly Ash Brick Making Machine, This Fly Ash Brick Making Machine Provides Extra Strength To The Fly Ash Bricks As It Has Two Vibro Compression Motors.

Model No. PHM- 05 Machine Details
Hydraulic Motor
10 HP
Auto Feed
Both layer
Press & Ejection
Auto
Vibro Motors
Yes
Cycle Time (Single Color)
6 seconds
Cycle Time (Double Color)
9 to 10 seconds
Oil Tank Capacity
300 litres
Safety Sensor Guard
Yes
Block Thickness
40 mm to 100 mm

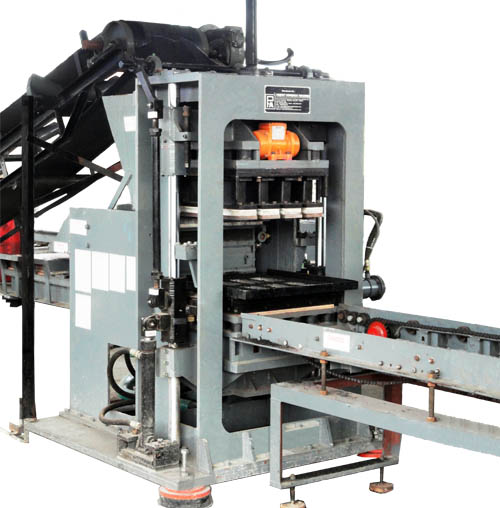

Fully Automatic Multi Cavity Fly Ash Brick Making Machine Plant Manufacturer In India
Multi Cavity Multi Purpose Plant

This is a Multi Purpose Blocks & Bricks Making Plant. On this Fly Ash Brick Making Plant automation is at its best, from Pan Mixer to Stacking Unit everything is controlled via PLC. Thus very less labour is required which saves time & money. This plant is very efficient as its cutting edge technology and precision manufacturing gives unbeatable results.

Model No. PHM- 06 Plant Machine Details
Hydraulic Motor
10 HP
Vibro Motor
4 HP
Pallet Size
600 x 570 x 6 mm/675 x 600 x 6 mm
Pallets Material
Steel
Panel Board
PLC
Heaters In Mould
Yes
Agitator In Trolley
Yes
Cycle Time
12 to 17 seconds
Model No. PHM- 06 Plant Pan Mixer Details
Capacity
500/800/1200 kg
Bucket Capacity
500/800/1200 kg
Main Hydraulic Motor
15/25/40 HP
Bucket Lifting Hydraulic Motor
5 HP
Water Motor
0.5 HP
Bins For Material
3
Load Cell 3 Nos
1.5 Ton Capacity
Digital Display For Material & Water
Yes
Water Flow Control
Automatic
Model No. PHM- 06 Plant Conveyer Details
Hydraulic Motor
5 HP
Length
7.5 meters
Width Of Belt
450 mm
Model No. PHM- 06 Plant Receiving Carriage Details
Hydraulic Motor
1 HP
Length
2.5 meters
Model No. PHM- 06 Plant Stacker Details
Hydraulic Motor
3 HP
Length
2 meters
Width
1 meter

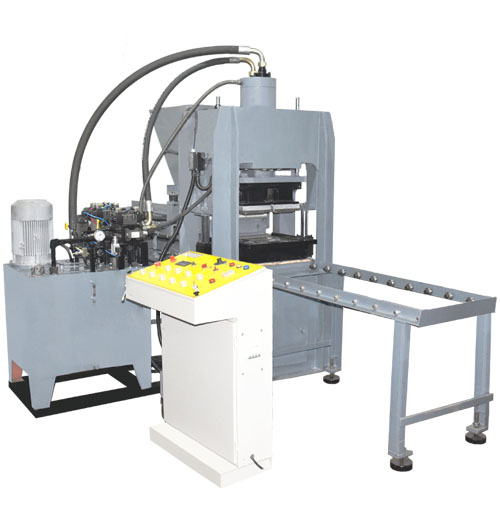

Fully Automatic Low Cost Multi Cavity Fly Ash Brick Pant Machine Plant Manufacturer In India
Multi Cavity Fly Ash Brick Making Machine only

PHM- 07 is exclusively a Fly Ash Brick Making Plant. This plant utilizes very low power consumption and is cost effective. It can produce 6 PCs of Fly Ash Bricks at a time. Manufactured by one of the best fly ash brick manufacturer in India.

Model No. PHM- 07 Machine Details
Power Consumption
Very Low
Compact & Economical
Yes
Controls
Manual & Auto
PCs per cycle
6 PCs
Production Capacity
17000 to 18000 per 8 hrs

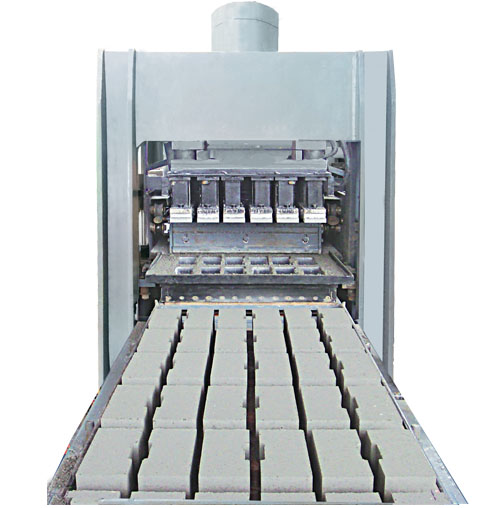

Fully Automatic Low Cost Multi Cavity Fly Ash Brick Pant Machine Plant Manufacturer In India
Multi Cavity Fly Ash Brick Making Machine Only

PHM- 08 is exclusively a Fly Ash Brick Making Machine Plant. This plant utilizes very low power consumption and is cost effective. It can produce 10 PCs of Fly Ash Bricks at a time.

Model No. PHM- 07 Machine Details
Power Consumption
Very Low
Compact & Economical
Yes
Controls
Manual & Auto
PCs per cycle
10 PCs
Production Capacity
17000 to 18000 per 8 hrs

ONE OF THE BEST MACHINERY OF INDIA

Get One Of The Best Integrated Machinery Of India, The Leading Manufacturer Of Premium Quality Paver Block Making Machine, Fly Ash Brick Making Machine, Solid Block Making Machine, Hollow Block Making Machine, Curb Stone Making Machine, Pan Mixers & Moulds.
